PW300: Powering business jets

The PW300 family offers a wide range of applications for business and regional jets. MTU has been collaborating with Pratt & Whitney Canada on this engine family since 1985.


MTU’s involvement in the PW300

MTU has a 25 percent share in both the PW305 and PW306, as well as a 15 percent share in the PW307. The PW300 engines are two-shaft turbofan engines for which MTU develops and manufactures the entire three-stage low-pressure turbine including exit case and mixer.

Facts

  • EIS: 1992

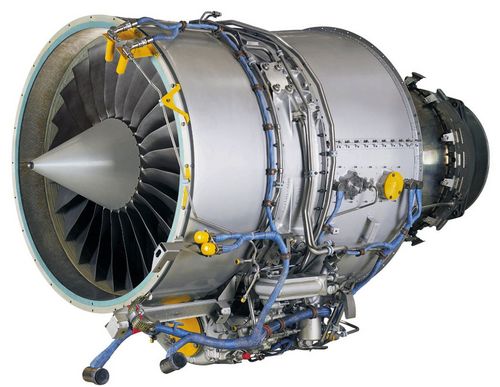

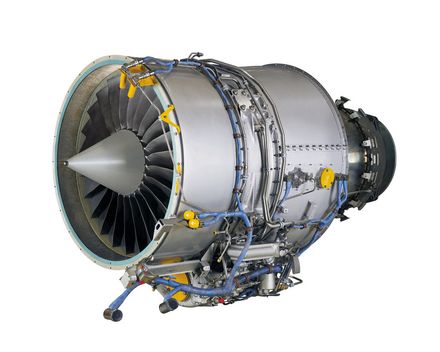

  • The PW300 is a two-shaft turbofan engine with a thrust category of 4,700-7,000 lbf
  • Single-stage fan with large airfoil height
  • Five-stage compressor: four axial stages, one radial stage (all of the blisks)
  • Variable inlet guide vanes
  • Two-stage high-pressure turbine with cooled single-crystal blades
  • Three-stage low-pressure turbine
  • Modular design

MTU competencies

  • Program share PW305: 25%
  • Program share PW306: 25%
  • Program share PW307: 15%


All models:


  • Engine testing
  • Development and manufacture of low-pressure turbine and casing
  • Maintenance at MTU Maintenance Berlin-Brandenburg

    Start year MRO: 2002
    Shop visits (2023): >350
    Workscope: Engine MRO

Partner

  • Pratt & Whitney Canada

Applications

  • Dassault Falcon 7X
  • Dassault Falcon 8X
  • Bombardier Learjet 60
  • Hawker Beechcraft 1000
  • Gulfstream G200
  • Fairchild Dornier 328Jet
  • Cessna Citation Sovereign
  • Cessna Citation Sovereign+
  • Cessna Citation Latitude

Technical Data

 PW307PW306PW305

Max. thrust (takeoff)

6,400 lbf

6,000 lbf

4,700 lbf

Length

7.2 ft

6.3 ft

6.7 ft

Width

3.4 ft

3.2 ft

3 ft

Height

3.9 ft

3.7 ft

3.7 ft
